Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 80 mm

Angle (Φ) : 60 to 70

Order Type : Code-Size (W)-Φ-OC(*)
Example : PCU-CS2.1-80-65-K

*For OC option Please refer to our catalogue

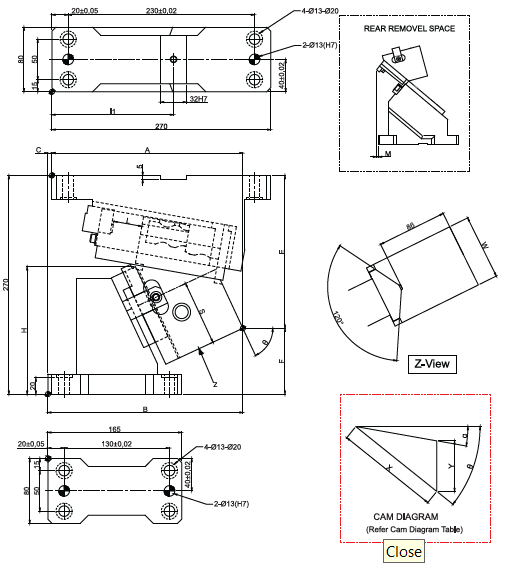

Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	G mm	h mm	l mm	L1 mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS2.1-80-60	80	60	240.64	240.64	0	176.59	93.41	157.7	157.7	50	170	75	98.5	130(12.5)	2625(267.7)	3250(331.4)	54.9(5.6)	109.8(11.2)	23.2
PCU-CS2.1-80-65	80	65	235.61	240.61	5	188.65	81.35	157.4	157.4	35	170	74	81.6	94(9.6)	2725(277.9)	3250(331.4)	54.9(5.6)	109.8(11.2)	23.7
PCU-CS2.1-80-70	80	70	227.83	237.83	10	195.53	74.47	157.1	157.1	30	170	75	86.4	152(15.5)	2825(288.1)	3250(331.4)	54.9(5.6)	109.8(11.2)	23.9
